FO-05 · NOTAMs & AIP Information Management

📊

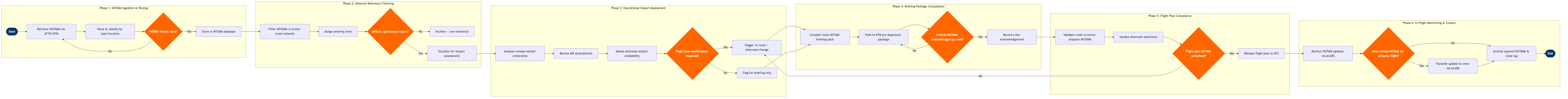

Process Flow Diagram (BPMN)

📋

L4 Process Steps

Step	Step Name	Role / Swim Lane	System	Input	Output	KPI	Dec?	Exc?
Phase 1 1.1	Retrieve NOTAMs from FAA/ICAO AFTN network	Flight Dispatch Systems Administrator	SITA WorldBit AFTN Gateway	Continuous AFTN/CIDIN feed from FAA NOTAM System (FNS) and ICAO NOF	Raw NOTAM messages ingested into NOTAM processing queue	NOTAM ingestion latency ≤5 min from issuance to system receipt	N	Y
1.2	Parse and classify NOTAMs by type and location	Flight Dispatch Systems Administrator	Honeywell GoDirect Flight Brief	Raw NOTAM text strings from AFTN queue	Classified NOTAM records: type (N, C, R, Q-code), ICAO location, validity window	NOTAM parse accuracy ≥99.5%; misclassification rate <0.5%	N	N
1.3	Validate NOTAM format completeness and decode Q-line	Flight Dispatch Systems Administrator	Honeywell GoDirect Flight Brief	Parsed NOTAM record with Q-line fields (FIR, code, purpose, scope, coordinates)	Validated NOTAM record or rejection flag with error description	Validation cycle time ≤30 sec per NOTAM batch	Y	Y
Phase 2 2.1	Filter NOTAMs against active airline route network	Flight Dispatcher	Jeppesen FliteDeck Pro (Dispatcher Module)	Validated NOTAM records; active city-pair route list from Amadeus SkyWORKS	Route-relevant NOTAM subset filtered by departure, destination, alternate, and enroute FIRs	False-positive NOTAM rate ≤10% (irrelevant NOTAMs passed to dispatchers)	N	N
2.2	Assign operational severity level to filtered NOTAMs	Flight Dispatcher	Jeppesen FliteDeck Pro (Dispatcher Module)	Route-relevant NOTAM subset with Q-code purpose/scope fields	Severity-ranked NOTAM list: Critical (runway/navaid closed), Significant (degraded service), Advisory (FYI)	Critical NOTAM identification accuracy ≥99.9%; missed critical NOTAM rate = 0	N	N
2.3	Determine if NOTAM affects operational route or airport	Flight Dispatcher	Jeppesen FliteDeck Pro (Dispatcher Module)	Severity-ranked NOTAM list; scheduled flight manifest for next 24 hours	Action decision: Escalate for impact assessment (Critical/Significant) or Archive (Advisory only)	Escalation decision cycle time ≤10 min per NOTAM batch review	Y	N
Phase 3 3.1	Analyse runway and navaid availability constraints	Flight Dispatcher	NAVBLUE N-Flight Plus	Critical/Significant NOTAMs for departure, destination, and alternate airports	Runway availability matrix; navaid serviceability status per airport	Constraint analysis completion ≥2 hours before STD for all affected flights	N	Y
3.2	Review AIP amendments and SUPs for permanent changes	Flight Dispatcher	Jeppesen eCharts / NavData Service	Current AIP amendments (AIRACs) and AIP Supplements for affected airports	List of permanent procedural changes affecting approach minima, SIDs/STARs, or obstacle clearance	AIRAC cycle review completion within 24 hours of effective date; 0 missed effective-date changes	N	Y
3.3	Assess alternate airport availability under active NOTAMs	Flight Dispatcher	NAVBLUE N-Flight Plus	Alternate airport candidates from flight plan; NOTAMs affecting alternate runways and navaids	Approved alternate airport list with NOTAM-qualified minima adjustments	Alternate qualification cycle time ≤20 min per flight; 0 releases with non-qualified alternates	N	Y
3.4	Determine if flight plan modification is required	Flight Dispatcher	NAVBLUE N-Flight Plus	Runway/navaid constraints; AIP changes; alternate qualification results	Modification flag: re-route, alternate change, fuel uplift revision, or no change required	Flight plan modification decision issued ≥90 min before STD	Y	Y
Phase 4 4.1	Compile route-specific NOTAM briefing package	Flight Dispatcher	Honeywell GoDirect Flight Brief	Filtered, severity-ranked NOTAMs for departure, enroute FIRs, destination, and alternates	Structured NOTAM briefing document: categorised, sorted by phase of flight, valid times highlighted	Briefing package generation time ≤15 min; package length ≤ 10 pages for domestic, ≤25 pages for international	N	N
4.2	Push NOTAM package to crew EFB pre-departure folder	Flight Dispatcher	Jeppesen FliteDeck Pro (Crew EFB)	Compiled NOTAM briefing package; flight number and tail assignment from Amadeus Altéa PSS	NOTAM package loaded on crew EFB with push notification to assigned Captain and First Officer	EFB delivery confirmation ≥60 min before STD; push failure rate <1%	N	Y
4.3	Confirm critical NOTAM acknowledgement by flight crew	Captain / First Officer	Jeppesen FliteDeck Pro (Crew EFB)	NOTAM briefing package with Critical items flagged; crew electronic signature workflow	Signed acknowledgement record with timestamp; unacknowledged items escalated to dispatcher	Crew acknowledgement completion ≥30 min before STD for all Critical NOTAMs; 0 departures without acknowledgement	Y	Y
Phase 5 5.1	Validate flight plan route against active airspace NOTAMs	Flight Dispatcher	NAVBLUE N-Flight Plus	Filed flight plan route (ICAO format); active airspace restriction NOTAMs (TFRs, restricted areas, ADIZs)	Route compliance report: conflicts flagged with NOTAM reference and lateral/vertical extent	Route validation cycle time ≤5 min; 0 flight plans released with unresolved airspace conflicts	N	Y
5.2	Update alternate airport selections per NOTAM constraints	Flight Dispatcher	NAVBLUE N-Flight Plus	NOTAM-qualified alternate list from Step 3.3; current fuel load plan	Revised alternate airports filed in ICAO flight plan; fuel adjustment order if additional alternate required	Alternate update reflected in ATC-filed flight plan ≥45 min before STD	N	Y
5.3	Confirm flight plan is fully NOTAM-compliant before release	Flight Dispatcher	NAVBLUE N-Flight Plus	Final flight plan with route, alternates, and fuel load; complete active NOTAM set	Dispatcher release signature and Aircraft Dispatcher's Release (ADR) document compliant with FAR 121.593	0 dispatcher releases with open unresolved Critical NOTAMs; release issued ≥30 min before STD	Y	Y
Phase 6 6.1	Monitor NOTAM updates for airborne flights via ACARS	Flight Dispatcher	SITA ACARS / Telex	Real-time NOTAM feed from Honeywell GoDirect; active airborne flight list	ACARS uplink messages to affected crews with new or amended NOTAM details	In-flight NOTAM update transmission latency ≤10 min from issuance; crew acknowledgement receipt ≥95%	Y	Y
6.2	Archive expired NOTAMs and update operational log	Flight Dispatch Systems Administrator	Honeywell GoDirect Flight Brief	Expired and cancelled NOTAM records; flight completion confirmations from Amadeus Altéa PSS	Archived NOTAM audit trail; updated operational log with NOTAM-driven delay and re-route codes	NOTAM archive completeness 100%; delay attribution accuracy ≥98% for NOTAM-caused events	N	N

📋

Process Attributes

Identification

Process IDFO-05

L1 DomainFlight Operations

L2 ProcessFlight Dispatch & Control

L3 NameNOTAMs & AIP Information Management

L4 Steps18 across 6 phases

Decision Gates6 (all with iteration loops)

Exceptions12 documented

Swim Lanes (Roles)

Flight Dispatch Systems Administrator

Flight Dispatcher

Captain / First Officer

Systems & Tools

SITA WorldBit AFTN GatewayHoneywell GoDirect Flight BriefJeppesen FliteDeck Pro (Dispatcher Module)NAVBLUE N-Flight PlusJeppesen eCharts / NavData ServiceJeppesen FliteDeck Pro (Crew EFB)SITA ACARS / Telex

Key Performance Indicators

Retrieve NOTAMs from FAA/ICAO AFTN networkNOTAM ingestion latency ≤5 min from issuance to system receipt

Parse and classify NOTAMs by type and locationNOTAM parse accuracy ≥99.5%; misclassification rate <0.5%

Validate NOTAM format completeness and decode Q-lineValidation cycle time ≤30 sec per NOTAM batch

Filter NOTAMs against active airline route networkFalse-positive NOTAM rate ≤10% (irrelevant NOTAMs passed to dispatchers)

Assign operational severity level to filtered NOTAMsCritical NOTAM identification accuracy ≥99.9%; missed critical NOTAM rate = 0

Determine if NOTAM affects operational route or airportEscalation decision cycle time ≤10 min per NOTAM batch review

Analyse runway and navaid availability constraintsConstraint analysis completion ≥2 hours before STD for all affected flights

Review AIP amendments and SUPs for permanent changesAIRAC cycle review completion within 24 hours of effective date; 0 missed effective-date changes

Airline-Specific Risks & Pain Points

FAA NOTAM System outages (e.g., Jan 2023 FAA NOTAM system failure grounding 10,000 flights) can break AFTN feed with no automatic failover to backup source

Legacy free-text NOTAM format (pre-ICAO Digital NOTAM standard) leads to high parse error rates, especially for non-standard national formats from international destinations

Incomplete Q-lines from some national NOTAM offices require manual correction, creating dispatcher workload spikes during high-NOTAM-volume periods (e.g., airshow TFRs, VIP TFRs)

Overly broad geographic filters result in NOTAM overload — dispatchers report reviewing 200–400 NOTAMs per long-haul release; filter tuning is manual and not route-aware

Automated severity scoring relies on Q-code purpose field, which is inconsistently applied by international NOTAM offices — human review remains mandatory for all Critical-category items

Dispatchers managing 30–50 concurrent flights face decision fatigue during high-tempo NOTAM periods; no AI-assisted triage available in current Jeppesen version

Inputs / Outputs

Primary InputContinuous AFTN/CIDIN feed from FAA NOTAM System (FNS) and ICAO NOF

Primary OutputArchived NOTAM audit trail; updated operational log with NOTAM-driven delay and re-route codes
