FO-08 · Network Operations Control (NOC)

📊

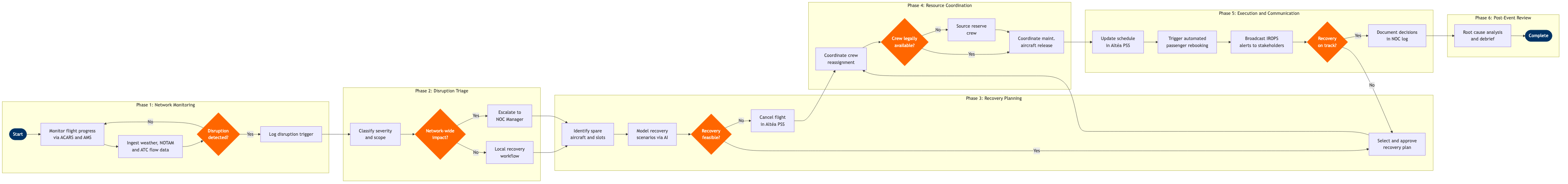

Process Flow Diagram (BPMN)

📋

L4 Process Steps

Step	Step Name	Role / Swim Lane	System	Input	Output	KPI	Dec?	Exc?
Phase 1 1.1	Monitor real-time flight progress network-wide	Network Operations Controller	SITA Airport Management System (AMS)	Live ACARS position reports, gate departure/arrival feeds	Real-time operational picture displayed on NOC wall board	Flight tracking refresh rate ≤60 sec; network visibility ≥99.5% uptime	N	N
1.2	Ingest weather and ATC flow constraint data	Network Operations Controller	Honeywell GoDirect Weather	METARs, TAFs, SIGMETs, FAA TFMS/SWIM Ground Delay Programs	Weather impact overlay on network map; GDP-affected flight list	Weather advisory ingestion latency ≤5 min from SIGMET issue	N	N
1.3	Assess airport capacity and slot utilisation	Network Operations Controller	SITA Airport Management System (AMS)	Airport slot allocations, gate availability, ground handler capacity	Slot utilisation report; gate conflict alerts	Gate conflict identification ≥30 min before scheduled pushback	N	Y
1.4	Detect operational deviation and trigger disruption alert	Network Operations Controller	Cairo AI Disruption Management Platform	Automated threshold breach: delay >15 min, ATC hold, maintenance release flag	Disruption alert ticket with affected flight list and estimated downstream cascade	Alert-to-triage response time ≤10 min for Severity 1 events	Y	N
Phase 2 2.1	Classify disruption severity and operational scope	NOC Duty Manager	Cairo AI Disruption Management Platform	Disruption alert ticket; affected flight count; estimated delay propagation	Severity classification (S1 Network Crisis / S2 Station Event / S3 Single Flight)	Correct severity classification rate ≥95% vs post-event review	Y	N
2.2	Model downstream cascade impact on network	Network Operations Analyst	Cairo AI Disruption Management Platform	Disruption origin flight; rotational aircraft tail assignments; crew pairings	Cascade impact map: N flights affected, estimated total delay minutes, PAX count at risk	Cascade model produced within 5 min of S1/S2 alert; PAX-at-risk count accuracy ±5%	N	Y
2.3	Escalate network-wide crisis to senior NOC leadership	NOC Duty Manager	SITA Messaging & Collaboration Platform	S1 severity classification; cascade impact map	Crisis bridge call initiated; senior leadership (VP Operations, VP Maintenance) notified; war room convened	Senior leadership notified within 15 min of S1 classification	Y	N
Phase 3 3.1	Identify available spare aircraft for recovery	Aircraft Routing Controller	Amadeus SkyWORKS	Current fleet status board; maintenance release schedule; spare aircraft positions	Candidate spare aircraft list with position, range capability, and availability window	Spare aircraft identified within 20 min of disruption classification for S1/S2 events	N	Y
3.2	Model and score recovery scenario options	Network Operations Analyst	Cairo AI Disruption Management Platform	Spare aircraft list; delay propagation model; crew availability matrix	Ranked recovery scenarios with cost, delay, and PAX-impact scores	≥3 recovery scenarios generated per S1/S2 event; scenario scoring completed within 10 min	Y	N
3.3	Evaluate crew duty legality for recovery assignments	Crew Scheduling Controller	Jeppesen Crew Management	Proposed recovery flight assignments; crew current duty start times and rest records	Legal/illegal flag per crew pairing; compliant alternatives where required	Zero FAR Part 117 duty-time violations in executed recovery plan; crew legality check completed within 15 min	Y	Y
3.4	Select and approve final recovery plan	NOC Duty Manager	Cairo AI Disruption Management Platform	Scored recovery scenarios; crew legality validation; cost approval authority	Approved recovery plan with assigned tail numbers, crew, and revised schedule	Recovery plan approved and published within 30 min of S1 disruption onset	Y	N
Phase 4 4.1	Issue crew reassignment instructions to Crew Scheduling	Crew Scheduling Controller	Jeppesen Crew Management	Approved recovery plan; reserve crew roster; current crew positions	Crew reassignment notifications sent via CrewTrac; updated pairing records	Crew contact-and-confirm cycle completed within 20 min; reserve activation rate ≥90% first contact	Y	Y
4.2	Coordinate aircraft maintenance release with MCC	Maintenance Control Center (MCC) Coordinator	AMOS by Swiss AviationSoftware	Recovery aircraft tail number; open deferred defects (DD) list; MEL status	Maintenance release confirmation or deferred defect deferral decision	Aircraft release decision issued within 30 min of MCC request for non-AOG aircraft	Y	Y
4.3	Issue gate changes and ground resource reallocation	Station Operations Controller	SITA Airport Management System (AMS)	Revised aircraft routing; gate availability; ground handler and fuelling schedules	Gate reassignment notices; revised ground service orders to handlers	Ground resources confirmed at revised gate ≥45 min before revised departure	N	Y
Phase 5 5.1	Update revised schedule and flight status in Altéa PSS	Network Operations Controller	Amadeus Altéa PSS	Approved recovery plan; revised departure times; aircraft and crew assignments	Updated flight records in Altéa DCS; GDS flight status broadcast via SITA Type B messages	Schedule update published to GDS within 10 min of plan approval; zero discrepancies between Altéa and SITA AMS flight status	N	N
5.2	Trigger automated passenger rebooking workflow	Passenger Operations Controller	Amadeus Altéa PSS	Cancelled/significantly delayed flights; passenger itinerary records; rebooking rules policy	Automated rebooking confirmations sent to affected PAX via email/SMS; waitlist cleared	≥85% of disrupted PAX rebooked within 2 hours of cancellation; EU261/DOT delay notification compliance 100%	Y	Y
5.3	Monitor recovery execution and track plan adherence	NOC Duty Manager	Cairo AI Disruption Management Platform	Real-time departure/arrival feeds; crew sign-in confirmations; maintenance release updates	Recovery tracking dashboard; variance alerts when execution deviates >15 min from plan	Recovery plan adherence ≥80% of revised departure times met within ±15 min; total network delay minutes reduced ≥40% vs no-action baseline	Y	N
Phase 6 6.1	Document NOC event log and decision audit trail	NOC Duty Manager	SITA Messaging & Collaboration Platform	Chronological decision log; communications record; final recovery outcomes	Closed NOC event ticket with full audit trail; regulatory documentation for DOT/CAA if required	Event documentation completed within 4 hours of network recovery; 100% of S1 events produce a formal After-Action Report	N	N

📋

Process Attributes

Identification

Process IDFO-08

L1 DomainFlight Operations

L2 ProcessNetwork Operations Control

L3 NameNetwork Operations Control (NOC)

L4 Steps18 across 6 phases

Decision Gates10 (all with iteration loops)

Exceptions8 documented

Swim Lanes (Roles)

Network Operations Controller

NOC Duty Manager

Network Operations Analyst

Aircraft Routing Controller

Crew Scheduling Controller

Maintenance Control Center (MCC) Coordinator

Station Operations Controller

Passenger Operations Controller

Systems & Tools

SITA Airport Management System (AMS)Honeywell GoDirect WeatherCairo AI Disruption Management PlatformSITA Messaging & Collaboration PlatformAmadeus SkyWORKSJeppesen Crew ManagementAMOS by Swiss AviationSoftwareAmadeus Altéa PSS

Key Performance Indicators

Monitor real-time flight progress network-wideFlight tracking refresh rate ≤60 sec; network visibility ≥99.5% uptime

Ingest weather and ATC flow constraint dataWeather advisory ingestion latency ≤5 min from SIGMET issue

Assess airport capacity and slot utilisationGate conflict identification ≥30 min before scheduled pushback

Detect operational deviation and trigger disruption alertAlert-to-triage response time ≤10 min for Severity 1 events

Classify disruption severity and operational scopeCorrect severity classification rate ≥95% vs post-event review

Model downstream cascade impact on networkCascade model produced within 5 min of S1/S2 alert; PAX-at-risk count accuracy ±5%

Escalate network-wide crisis to senior NOC leadershipSenior leadership notified within 15 min of S1 classification

Identify available spare aircraft for recoverySpare aircraft identified within 20 min of disruption classification for S1/S2 events

Airline-Specific Risks & Pain Points

ACARS datalink gaps over oceanic/remote sectors create blind spots; controller must cross-reference multiple screens to build situational awareness

FAA TFMS GDP notifications arrive via multiple channels (NAS Status, SWIM API, phone) with no single consolidated feed — manual reconciliation required

At slot-controlled airports (LHR, JFK), late slot returns trigger IATA WASG 80:20 use-it-or-lose-it penalties — NOC must balance recovery options against slot forfeiture risk

Cairo AI cascade modelling accuracy degrades when multiple simultaneous disruptions interact — controller must validate AI-generated impact scores manually for compounding events

No standardised severity matrix shared between NOC, Crew Scheduling, and Maintenance Control — classification disagreements delay activation of the correct recovery protocol

Aircraft tail swap history held in Jeppesen Crew and SITA AMS separately — reconciling rotational conflicts across systems requires manual data export and is error-prone at speed

Inputs / Outputs

Primary InputLive ACARS position reports, gate departure/arrival feeds

Primary OutputClosed NOC event ticket with full audit trail; regulatory documentation for DOT/CAA if required
