FO-13 · Performance & FDR Data Monitoring

📊

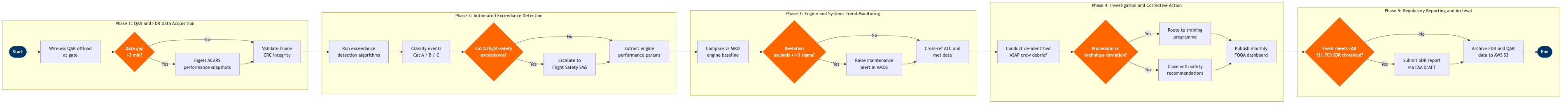

Process Flow Diagram (BPMN)

📋

L4 Process Steps

Step	Step Name	Role / Swim Lane	System	Input	Output	KPI	Dec?	Exc?
Phase 1 1.1	Trigger wireless QAR data offload at gate	FOQA Data Engineer	Teledyne Controls GroundLink	Aircraft weight-on-wheels signal; gate docking confirmation	Raw QAR binary file transferred to FOQA ground server	Offload completion within 10 min of gate arrival; flight coverage rate ≥99%	N	Y
1.2	Validate data frame completeness and CRC integrity	FOQA Data Engineer	Safety Line FOQA Platform	Raw QAR binary file from Step 1.1	Validated flight data file or data gap report	Data completeness ≥98% of flight duration; frame error rate <0.1%	Y	N
1.3	Ingest supplemental ACARS performance snapshots	FOQA Data Engineer	SITA ACARS	Data gap notification from Step 1.2 or routine ACARS push	ACARS performance dataframes merged into consolidated flight record	ACARS data merge success rate ≥95%; gap-fill latency <30 min	N	Y
Phase 2 2.1	Execute automated exceedance detection run	FOQA Analyst	Safety Line FOQA Platform	Validated and merged flight data file from Phase 1	Exceedance event list with parameter name, recorded value, threshold, and timestamp	Detection run completion <30 min per flight; false positive rate <5%	N	N
2.2	Classify exceedances by severity Cat A/B/C	FOQA Analyst	Safety Line FOQA Platform	Exceedance event list from Step 2.1	Classified exceedance report (Cat A = flight safety, Cat B = airworthiness, Cat C = crew technique)	Classification accuracy ≥97%; all Cat A events reviewed within 24 hr of detection	Y	N
2.3	Escalate Cat A exceedance to Flight Safety	Flight Safety Officer	Intelex SMS	Cat A exceedance classification from Step 2.2	Safety investigation record opened; NOC and crew scheduling notified	Cat A notification delivered to Flight Safety Manager <2 hr of detection	N	Y
Phase 3 3.1	Extract engine performance parameters post-flight	Performance Engineer	Honeywell GoDirect Flight	Completed flight leg identifier; aircraft tail number	EGT margin, N1 deviation, fuel flow, vibration, and oil pressure time series per engine	Parameter extraction completeness ≥99.5%; processing latency <15 min post-landing	N	N
3.2	Compare engine trends against MRO baseline	Performance Engineer	AMOS by Swiss AviationSoftware	Engine parameter time series from Step 3.1; fleet engine health baseline in AMOS	Engine health trend report; deviation flags relative to fleet statistical baseline	EGT margin loss ≤1°C per flight cycle; alerts triggered at ±3σ deviation from fleet mean	Y	N
3.3	Raise maintenance alert for engine trend deviation	Performance Engineer	AMOS by Swiss AviationSoftware	Deviation flag exceeding ±3σ threshold from Step 3.2	Corrective work order raised; borescope inspection scheduled against next available ground time	Maintenance alert actioned within 4 hr of detection; on-wing unplanned engine removal rate <0.05 per 1,000 flight hours	N	Y
Phase 4 4.1	Cross-reference event with ATC and meteorological records	FOQA Analyst	Honeywell GoDirect Flight	Flagged exceedance event from Phase 2; flight leg metadata	Contextualised event report overlaying ATC radar track, METAR/SIGMET, and PIREP data	Contextualisation report completed within 48 hr of event detection	N	N
4.2	Conduct de-identified ASAP crew debrief	Safety Officer	Intelex SMS (ASAP Module)	Contextualised event report from Step 4.1; crew roster for the flight	Crew disclosure statement; event narrative; de-identified ASAP safety report	ASAP debrief completed within 72 hr of event detection; crew voluntary disclosure rate ≥80%	Y	N
4.3	Route finding to training or close investigation	FOQA Programme Manager	Intelex SMS	Debrief outcome and root cause classification from Step 4.2	Training referral issued to LMS, or closed investigation record with corrective recommendations	Corrective action closure within 30 days; recurrence rate for same event type <5% within 12 months	N	N
Phase 5 5.1	Publish monthly FOQA performance dashboard	Flight Safety Manager	Tableau	Aggregated exceedance data and KPI metrics exported from Safety Line FOQA	FOQA monthly report; fleet-level performance dashboard published to safety portal	Dashboard published by 5th calendar day of each month; ≥12 FOQA KPIs tracked and trended	N	N
5.2	Evaluate event against mandatory SDR reporting threshold	Safety Officer	Intelex SMS	Completed investigation record; regulatory threshold matrix (FAR 121.703, IOSA ISM)	Regulatory reporting decision memo (SDR required Y/N; ASAP report required Y/N)	Mandatory reporting decisions documented within 48 hr of investigation close	Y	N
5.3	Submit SDR or ASAP report to FAA	Safety Officer	FAA DrAFT Portal	Reporting decision memo and closed investigation record from Step 5.2	Filed SDR or ASAP report; FAA confirmation number recorded in SMS	SDR submitted within 96 hr of discovery per FAR 121.703; ASAP report submitted within 24 hr of event	N	Y
5.4	Archive FDR and QAR data per FAR 91.609 retention policy	FOQA Data Engineer	AWS S3	Validated FDR/QAR files, investigation records, and all associated reports	Archived data objects with retention metadata tags; automated deletion schedule per regulation	100% of FDR/QAR files archived within 24 hr of processing completion; retention period ≥25 hr (FDR per FAR 91.609), ≥2 yr (QAR programme data)	N	N

📋

Process Attributes

Identification

Process IDFO-13

L1 DomainFlight Operations

L2 ProcessNetwork Operations Control

L3 NamePerformance & FDR Data Monitoring

L4 Steps16 across 5 phases

Decision Gates5 (all with iteration loops)

Exceptions5 documented

Swim Lanes (Roles)

FOQA Data Engineer

FOQA Analyst

Flight Safety Officer

Performance Engineer

Safety Officer

FOQA Programme Manager

Flight Safety Manager

Systems & Tools

Teledyne Controls GroundLinkSafety Line FOQA PlatformSITA ACARSIntelex SMSHoneywell GoDirect FlightAMOS by Swiss AviationSoftwareIntelex SMS (ASAP Module)TableauFAA DrAFT PortalAWS S3

Key Performance Indicators

Trigger wireless QAR data offload at gateOffload completion within 10 min of gate arrival; flight coverage rate ≥99%

Validate data frame completeness and CRC integrityData completeness ≥98% of flight duration; frame error rate <0.1%

Ingest supplemental ACARS performance snapshotsACARS data merge success rate ≥95%; gap-fill latency <30 min

Execute automated exceedance detection runDetection run completion <30 min per flight; false positive rate <5%

Classify exceedances by severity Cat A/B/CClassification accuracy ≥97%; all Cat A events reviewed within 24 hr of detection

Escalate Cat A exceedance to Flight SafetyCat A notification delivered to Flight Safety Manager <2 hr of detection

Extract engine performance parameters post-flightParameter extraction completeness ≥99.5%; processing latency <15 min post-landing

Compare engine trends against MRO baselineEGT margin loss ≤1°C per flight cycle; alerts triggered at ±3σ deviation from fleet mean

Airline-Specific Risks & Pain Points

WiFi connectivity gaps at remote apron stands force manual USB retrieval, adding 4–6 hr to processing queue and delaying same-day exceedance review

Pre-2010 QAR units use proprietary frame formats requiring manual decoding — adds up to 2 hr per flight to the processing queue and delays exceedance detection

ACARS snapshot frequency (every 10–30 min) is too coarse to reconstruct fine-grained exceedance events; oceanic airspace has no ACARS coverage, leaving gap-fill as an estimate only

Threshold libraries require manual calibration per aircraft type variant (e.g., 737-800 vs MAX 8 have different structural limits); miscalibration generates false positives that erode crew confidence in the FOQA programme

IOSA audit and airline AQP programme use different category boundary definitions — maintaining dual threshold tables increases configuration error risk and complicates audit trail documentation

Integration between Safety Line FOQA and Intelex SMS is typically manual (CSV export/import), introducing notification latency that risks breaching 24-hour internal reporting SLAs and downstream regulatory filing windows

Inputs / Outputs

Primary InputAircraft weight-on-wheels signal; gate docking confirmation

Primary OutputArchived data objects with retention metadata tags; automated deletion schedule per regulation
