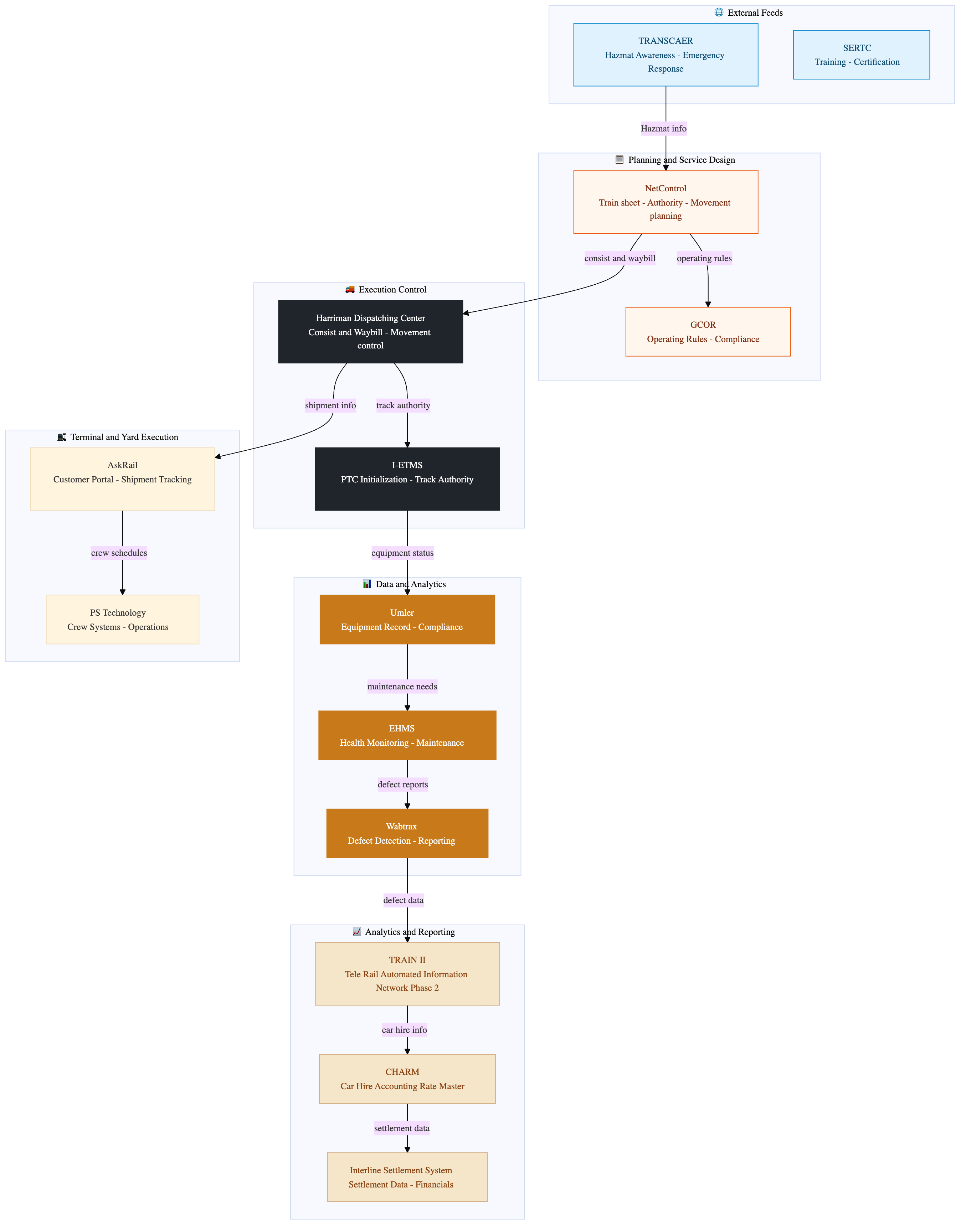

EA-08 Hazardous Materials & Environmental Architecture

Vector diagram — stays sharp at any zoom • Scroll to zoom • Drag to pan • Download SVG • Download PNG

📋 Diagram Details
Diagram IDEA-08
TitleHazardous Materials & Environmental Architecture
L1 Domain☣ Hazardous Materials & Environmental
ScopeSystem landscape and data flows across Hazardous Materials & Environmental for a US Class I freight railroad, Union Pacific archetype
Key SystemsAskRail TRANSCAER SERTC NetControl I-ETMS Umler EHMS TRAIN II Wabtrax
DescriptionThe Hazardous Materials & Environmental Architecture for a US Class I freight railroad, Union Pacific archetype, integrates systems to manage hazardous materials transportation, emergency response, and environmental compliance. Key components include AskRail for customer inquiries, TRANSCAER for community awareness, and SERTC for training. The architecture leverages NetControl for service design, I-ETMS for train management, Umler for equipment tracking, EHMS for health monitoring, TRAIN II for information networks, and Wabtrax for real-time data.
