EA EA-09 — Intermodal & Automotive Operations Architecture

System landscape and data flows across Intermodal & Automotive Operations for a US Class I freight railroad, Union Pacific archetype

🗺 Architecture Diagram — 4K vector, click to zoom

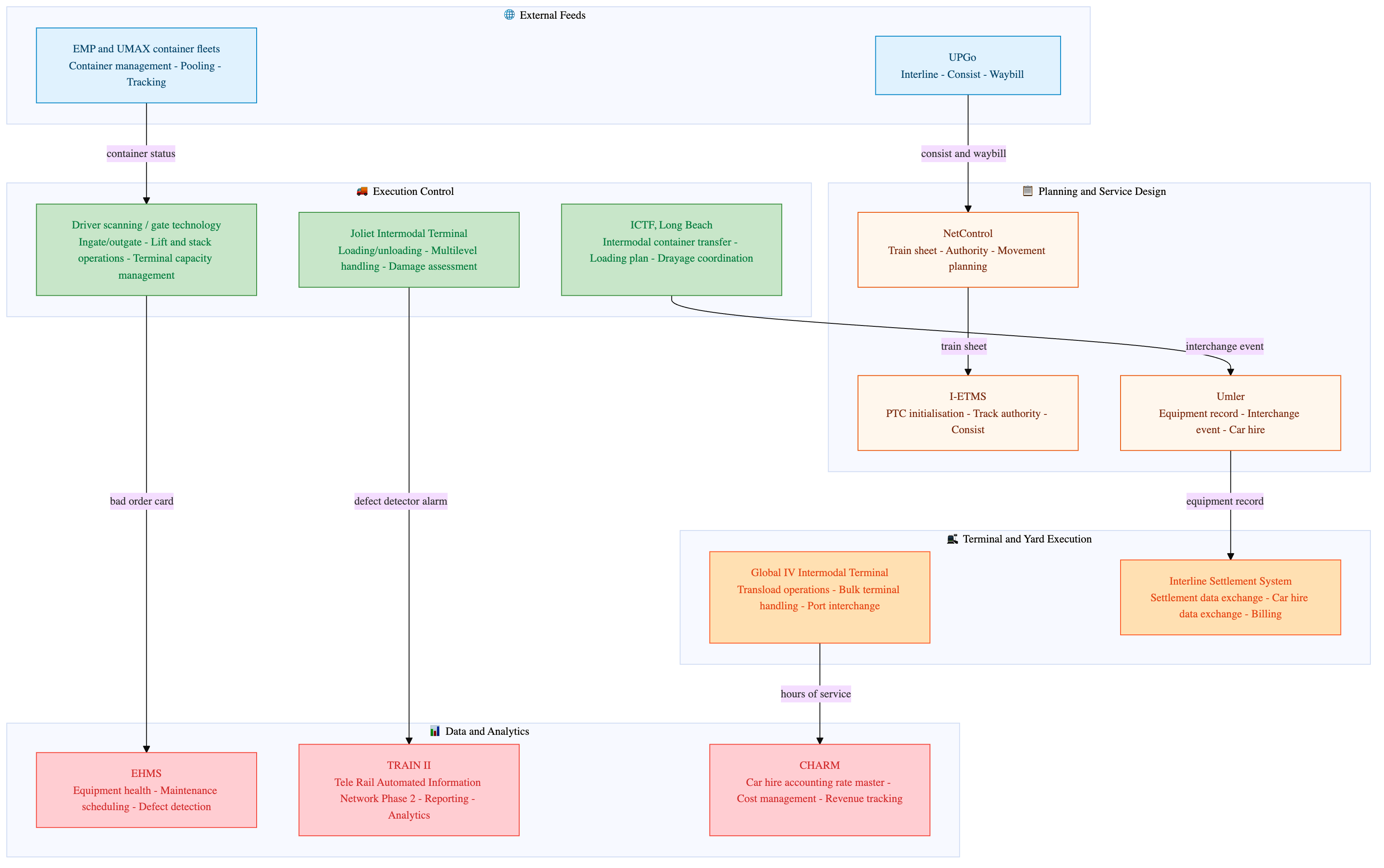

EA-09 Intermodal & Automotive Operations Architecture

Vector diagram — stays sharp at any zoom • Scroll to zoom • Drag to pan • Download SVG • Download PNG

📋 Diagram Details
Diagram IDEA-09
TitleIntermodal & Automotive Operations Architecture
L1 Domain📦 Intermodal & Automotive Operations
ScopeSystem landscape and data flows across Intermodal & Automotive Operations for a US Class I freight railroad, Union Pacific archetype
Key SystemsUPGo EMP UMAX ICTF Joliet Intermodal Terminal Global IV Intermodal Terminal Driver scanning / gate technology (generic 'Yard System') NetControl I-ETMS Umler
DescriptionThe enterprise architecture for Union Pacific's intermodal and automotive operations involves a comprehensive system landscape that integrates various technologies and processes to manage container fleets, terminal operations, and data exchange. The architecture leverages systems such as UPGo, EMP and UMAX container fleets, ICTF, and Joliet Intermodal Terminal to ensure efficient handling of intermodal containers. Data flows are managed through NetControl for service design, I-ETMS for interoperable train management, and Umler for equipment registration.
