EA EA-12 — Technology, Data & Cybersecurity Architecture

System landscape and data flows across Technology, Data & Cybersecurity for a US Class I freight railroad, Union Pacific archetype

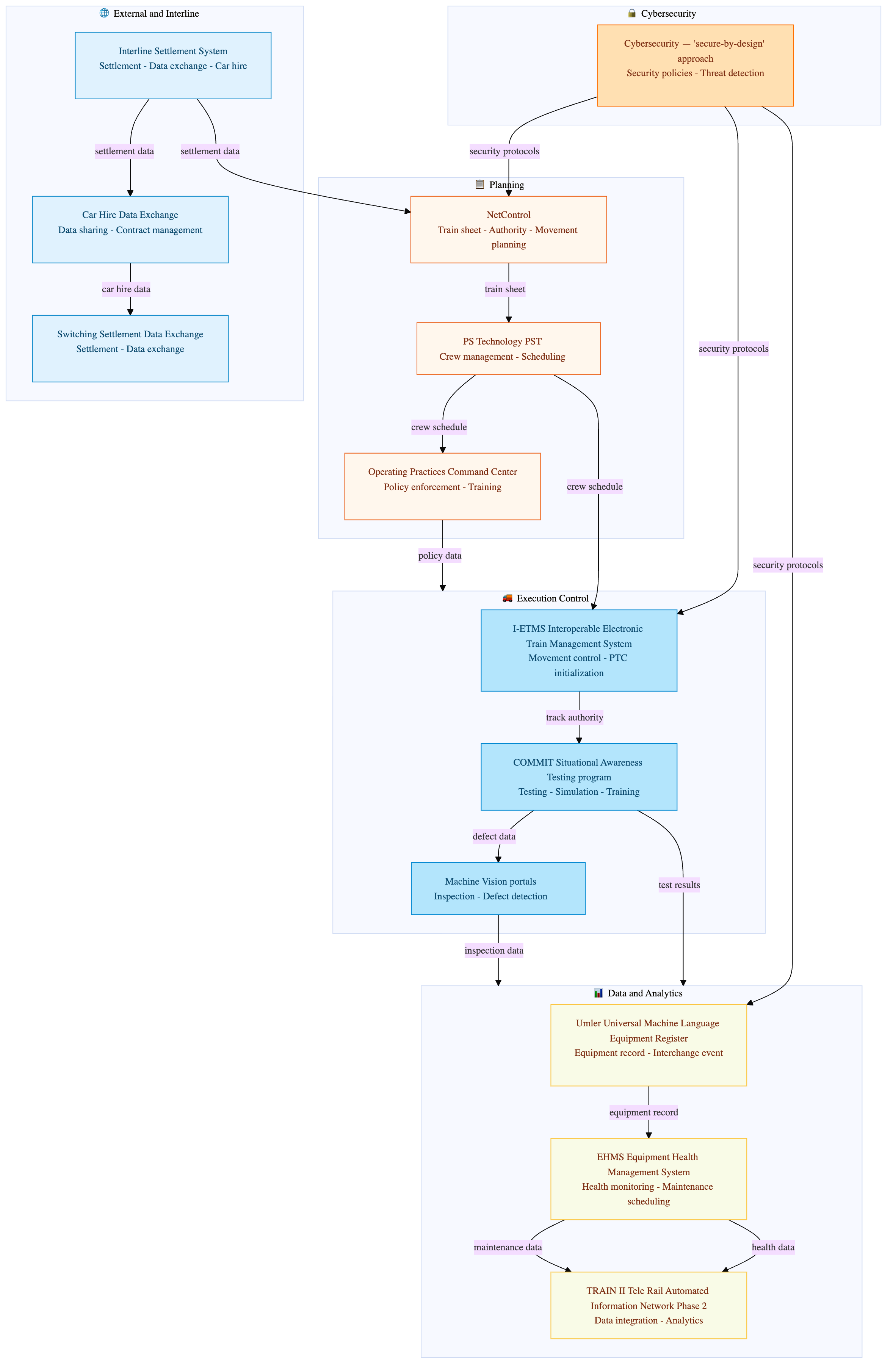

🗺 Architecture Diagram — 4K vector, click to zoom
EA-12 Technology, Data & Cybersecurity Architecture

Vector diagram — stays sharp at any zoom • Scroll to zoom • Drag to pan • Download SVG • Download PNG

📋 Diagram Details
Diagram IDEA-12
TitleTechnology, Data & Cybersecurity Architecture
L1 Domain🖥 Technology, Data & Cybersecurity
ScopeSystem landscape and data flows across Technology, Data & Cybersecurity for a US Class I freight railroad, Union Pacific archetype
Key SystemsNetControl I-ETMS Umler PS Technology (PST) Operating Practices Command Center COMMIT (Situational Awareness Testing program) Machine Vision portals Cybersecurity — 'secure-by-design' approach
DescriptionThe technology, data, and cybersecurity architecture for a US Class I freight railroad, Union Pacific archetype, integrates advanced systems for dispatching, train management, equipment tracking, and security. This architecture ensures seamless operations across various layers, from external interline communications to real-time execution control and comprehensive data analytics.
